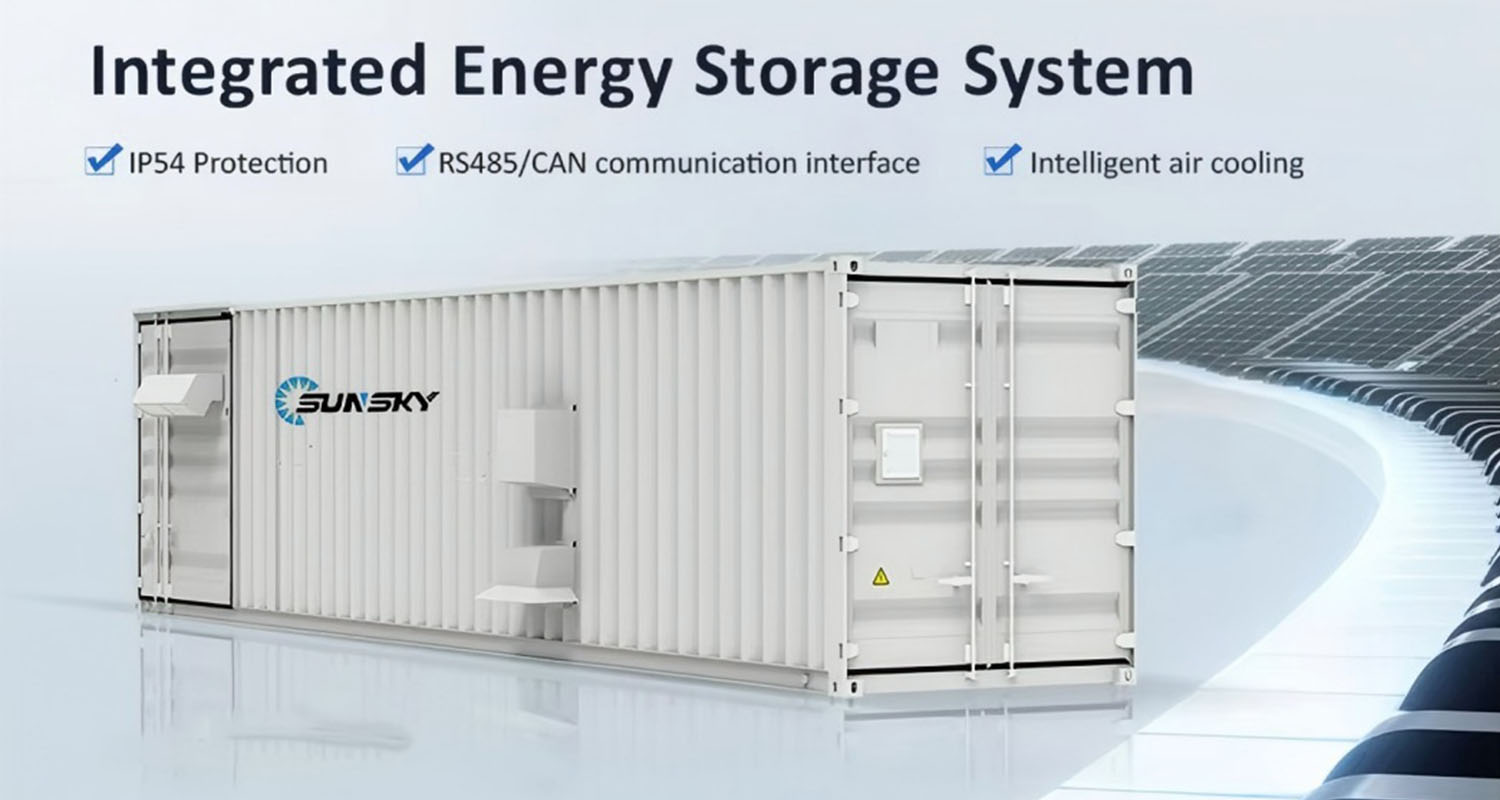

BESS Container Energy Storage System
Industrial/Commercial/Factory/Hospital
ISO, CB, CE, TUV/Un38.3/En50549
Cycle 8000+
Product Description
Sunsky Warranty
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
How Does It Work
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product Parameters
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| Model | SUN20FT-0.5MW/1MWh | SUN40FT-1MW/2MWh |
| Battery Data | 3.2V/200Ah/280Ah/314Ah/LFP | |
| Cell type | HIGEE/EVE/REPT/CORNEX | |
| Celle life cycle | >8,000 cycles@0.5C,25°C | |
| Cell spec | 3.2V/200Ah/280Ah/314Ah/LFP | |
| Total Rated Energy Capacity | 1003.52kWh | 2007.04kWh |
| BMS communication interface | Ethernet, CAN, RS485 | |
| BMS communication protocol | Modbus RTU, Modbus TCP | |
| General Data | ||
| Dimension w/o clearances (L*W*H) | 6058*2591*2438mm | 12116*2438*2896mm |
| Weight of whole system | 15230KGS | 30460KGS |
| Degree of protection | IP54 | |
| Operating temperature range | -20~65°C | |
| Relative humidity | 0~95% (non-condensing) | |
| Max working altitude | 6000m (derate over 3000m) | |
| Cooling concept of DC hatch | HAVC | |
| Cooling concept of PCS hatch | Forced air cooling for power electronics. Air conditioned for battery system | |
| Fire extinguisher system | HFC bottle group | |
| Communication interfaces | RS485, Ethernet, GPRS | |
| Communication protocols | Modbus RTU, Modbus TCP | |
Product Details
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Our factory
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Sunsky Project
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
